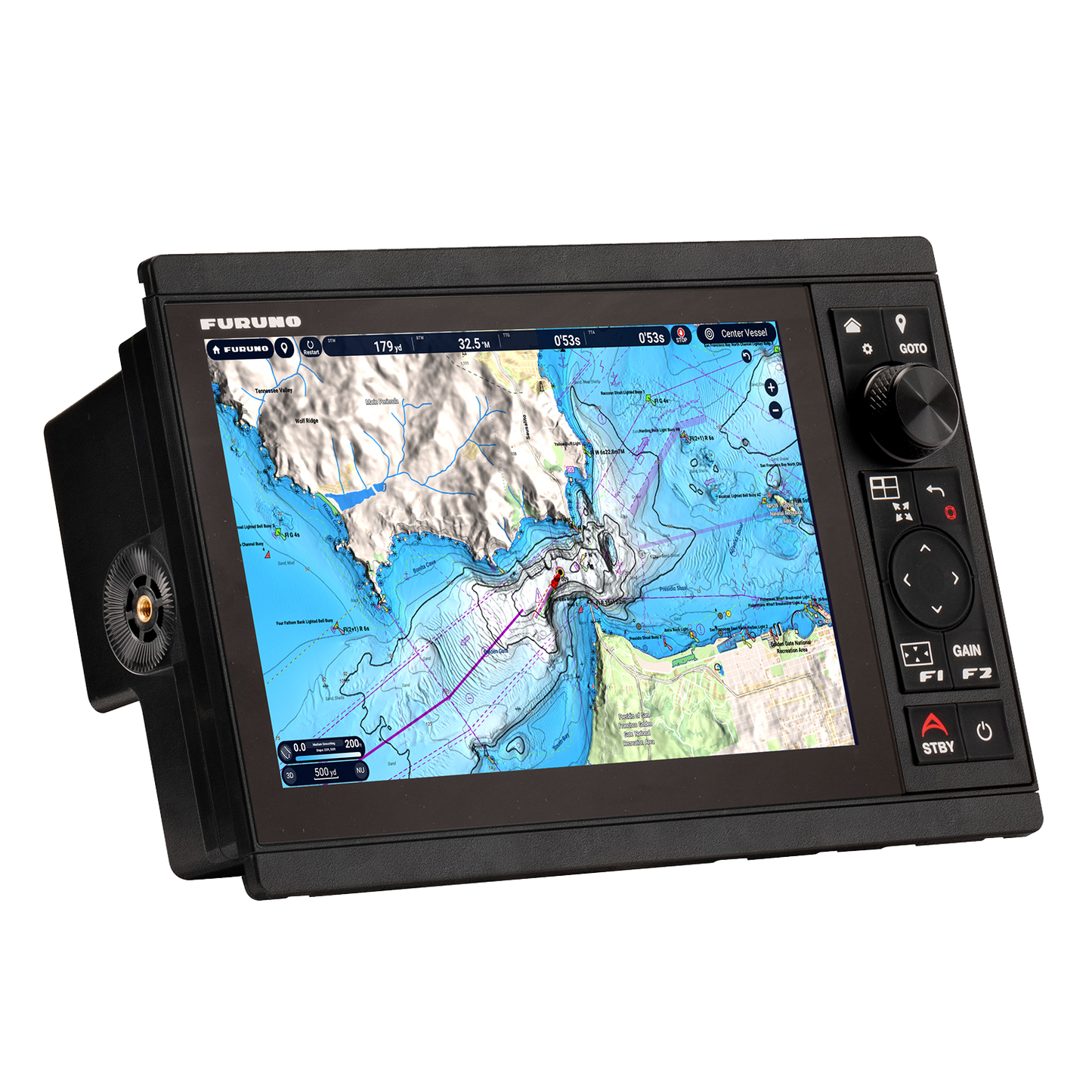

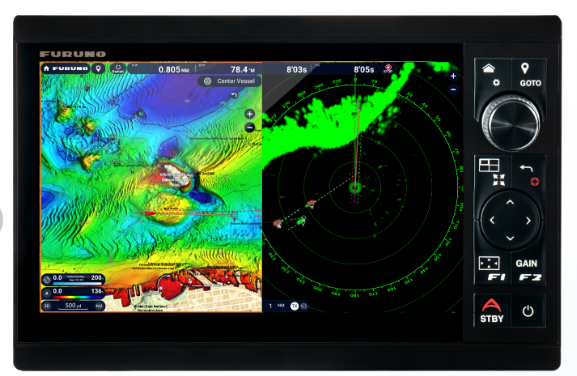

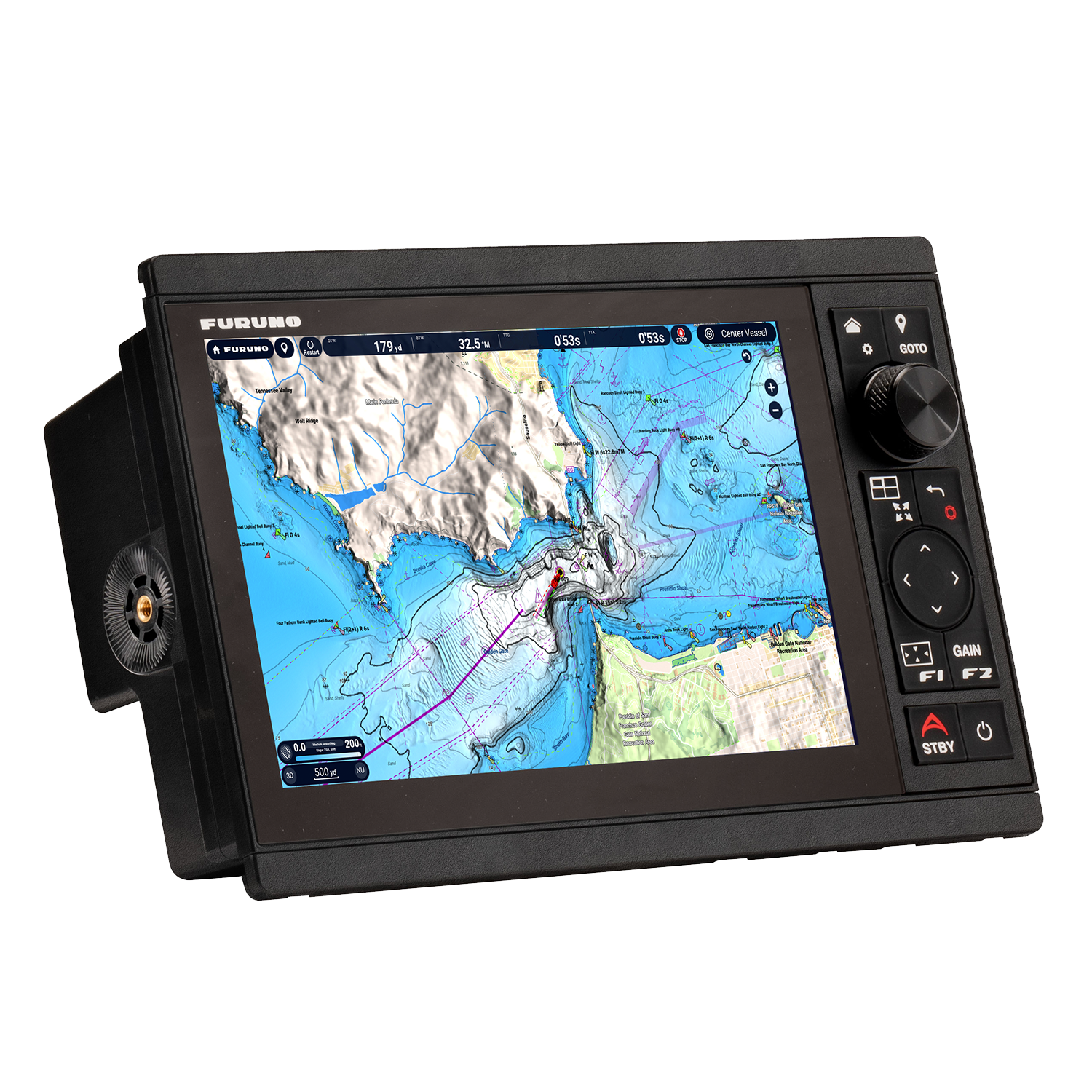

Furuno TZT10X NavNet TZtouch3 Chart Plotter, 10" All-Glass IPS Display FULL HD (1920x1080)
Model: TZT10X- New TZ MAPS for highly-detailed navigation and fishing charts
- Built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder
- Built-in 230kHz or 455kHz CHIRP Side-Scan
- Powerful hexacore processor for rapid response
Explore the future of navigation with NavNet TZtouchXL - extra-large, wide 16"", 22"", and 24"" all-glass Multi Function Displays with exceptional clarity from all angles that enhance the functionality and style of your helm. Or go with the hybrid controls of the 10"" & 13"" options that make navigating intuitive and easy under any sea conditions, no matter the size of your vessel. NavNet TZtouchXL delivers the ability to tailor the helm to meet the captain's exact needs, with magnetron or Solid-State Doppler Radars, high-powered Fish Finders, AIS, Autopilot, and Deep Water Multibeam Sonar options, and more!
NavNet TZtouchXL delivers new features like TZ MAPS with BathyVision, the most advanced and capable electronic charts in the world. The TZ Maps engine draws upon a worldwide database of high-resolution information to create crisp, clear navigation with a variety of colour themes and fishing charts with fully editable colour palettes. TZ Maps deliver a timeless navigation experience at any magnification. It sounds incredible, and it is - you have to see it to believe it!
Specifications
| Display Unit | |
| Type | Colour TFT multi touch IPS LCD |
| Screen Size | 10.1"" Wide |
| Screen Resolution | WUXGA 1920 x 1200 |
| Screen Brightness | 900 cd/m2 (typical) |
| Display Colours | 16,770,000 colours (Chart Plotter), 64 colours (Radar/Fish Finder) |
| GPS/WAAS | |
| Receiver Type GPS: | 72 channels, SBAS: 1 channel (C/A mode, WAAS) |
| Receiving Frequency | L1 (1575.42 MHz) |
| Time to First Fix | 100 s (cold start) |
| Accuracy | 10 m (GPS), 7 m (MSAS), 3 m (WAAS) |
| Position Update Interval | 100 ms or 10 Hz |
| CHART PLOTTER | |
| Cartography | TZ MAPS, MM3 Vector, and CMOR capable (U.S. only) |
| Memory Capacity | 30,000 user points, 100,000 points for ship's tracks, 200 planned routes (500 points per route) |
| Alarms | Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required) |
| RADAR | |
| Display Modes | Head-up, North-up* *Heading input required. |
| Echo Trails | Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous (Heading input required) |
| Target Tracking | 100 ARPA Targets (Radar dependent) with fully automatic target acquisition (Heading input required) |
| Radar Alarms | Guard Zone, CPA/TCPA, Video, Azimuth, Heading Line |
| FISH FINDER | |
| Transmit Frequency* | CW: 50/200 kHz, CHIRP: 40 kHz to 240 kHz (Low, Medium, and High) |
| Transducer | 300/600 W or 1 kW* *Matching box MB1100 required for some transducers. |
| Display Range | 2 to 1,200 m; shift 0 to 1,200 m (1,200-2,400m / 4,000-8,000ft) |
| Extension Mode | ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), Bottom Discrimination, TruEcho CHIRP™ (with compatible transducer) |
| Picture Advance | 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop |
| Fish Finder Alarms | Fish School, Fish School for bottom lock |
| SIDE-SCAN | |
| Transmit Frequency* | CHIRP: 220-240KHz/445-465KHz |
| Transducer | 230kHz: 225T-PR904, 225T-SS904. 225T-TM904 / 455kHz: 455T-PR903, 455T-SS903. 455T-TM903 |
| Display Range | 750 feet to each side |
| Display Colours | Green, Blue, Amber, White |
| Display Screen Sizes | Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen |
| Direct Connect to MFD | Direct connect to TZ10X, TZT13X, TZT16X only; may be networked with TZT22X/TZT24X |
| INTERFACE | |
| NMEA2000 | 1 Port |
| NMEA0183 | 1 Serial Output Port |
| LAN | 1 Port (1000 BASE-T) |
| USB | 1 Port (USB 3.0) for control unit |
| Video I/O | Input: 1 port (NTSC/PAL) |
| AUX I/O | 2 Ports (Event Switch, Buzzer Output, [10"", 13"" and 16"" KP I/O], and External Power Switch) |
| SD Card Slot | 1 Slot (Micro SDXC, rear) |
| Wireless LAN | IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max |
| Transducer Connection | 1 Port 12 pin for CHIRP/CW, 1 Port 12 pin for Side-Scan |
| ENVIRONMENT | |
| Temperature | -15°C to +55° C |
| Relative Humidity | 93% or less at +40° C |
| Waterproofing | IP56 |
| POWER | |
| Voltage | 12-24 VDC |
| * Feature works only with certain transducers. Check to ensure your transducer is compatible. | |
| ** In some instances, fish size indicated on the TZtouchXL may differ from its actual size. Please carefully read the operator’s manual before utilizing this feature | |
